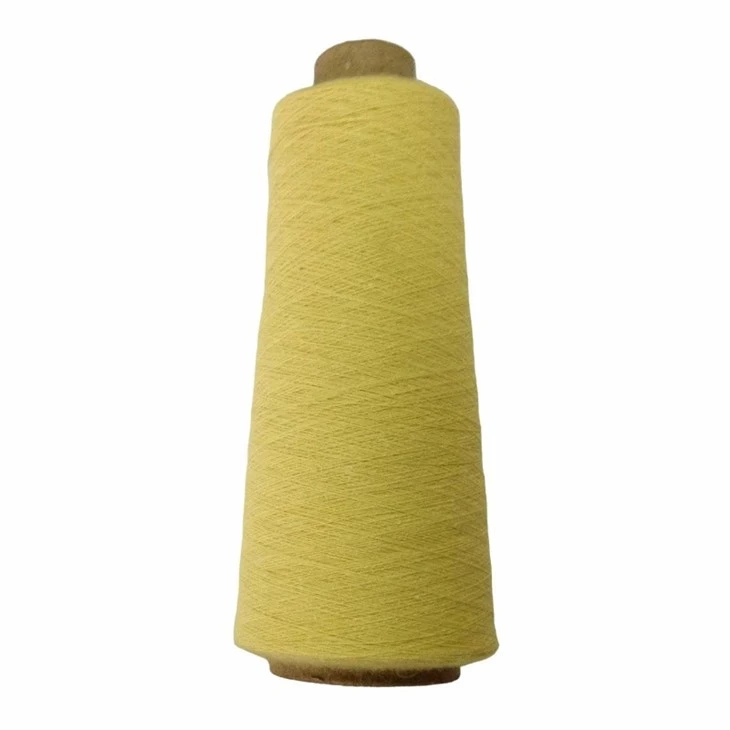

Aramid Spun Yarn for Weaving Belt

Aramid Spun Yarn for Weaving Belt

Material: 100% para aramid
Yarn count: Ne20S/1,20S/2,30S/2,40S/2
Aramid yarn is a high-performance synthetic fiber with a variety of excellent properties, such as low density, flame retardant, insulation, high temperature resistance, high strength, high modulus, chemical corrosion resistance, cutting resistance, fatigue resistance, etc.
Send Inquiry
Description
Technical Parameters

Aramid Spun Yarn for Weaving Belt

Material: 100% para aramid

Yarn count: Ne20S/1,20S/2,30S/2,40S/2

Aramid yarn is a high-performance synthetic fiber with a variety of excellent properties, such as low density, flame retardant, insulation, high temperature resistance, high strength, high modulus, chemical corrosion resistance, cutting resistance, fatigue resistance, etc.



These properties make aramid yarns widely used in many fields:



Optical cable field: Due to its high modulus, high breaking strength and low breaking elongation, aramid yarn is suitable for ADSS optical cables, non-metallic optical cables and indoor optical cables. It remains stable at high temperatures, has low shrinkage and creep, and a very high glass transition temperature.

1 Military and national defense: Aramid yarn is widely used in military and national defense fields due to its light weight, high strength, high elastic modulus and other properties, such as body armor, personal protective equipment, bulletproof armor, etc.

2 Environmental protection field: Meta-aramid is used for environmental protection due to its high temperature resistance, flame retardancy and electrical insulation properties, such as making non-woven fabrics and filter cloths for high-temperature flue gas filtration.

Aerospace: Aramid yarn is widely used in aerospace fields such as aircraft and satellites due to its high strength, high temperature resistance and corrosion resistance.

3 Automobile industry: Aramid yarn can be used in automobile tires, braking systems, air conditioning systems and other components, and has high heat resistance and wear resistance.



Electrical and electronic fields: Aramid yarn can be used to manufacture electrical insulation materials, cables, batteries and other components, with excellent insulation properties and high temperature stability.

Medical and health field: Aramid yarn can be used to prepare medical fibers, yarns, medical syringes and other medical supplies. It has the advantages of being difficult to burn and corrosion-resistant.



Product name

Para aramid Yarn

Date of manufacture

Inspection Item

Standard requirements

Inspection Result

Specification

20S/1

20S/1

Twist direction

S

S

Twist

500

500

Strength

2167cn

2167cn

Breaking extensibility

14%

Yarn distribution

Evenness
