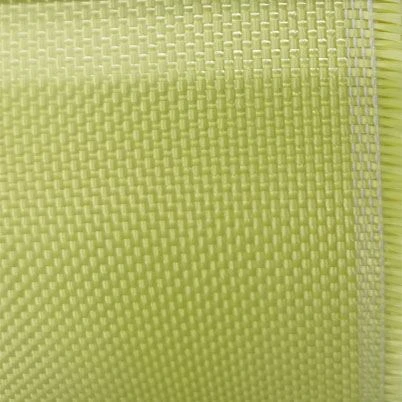

BR2 level Lightweight and wear-resistant aramid fabric - ideal material for outdoor equipment and military protection
Gram weight: 200gsm/280gsm/410gsm/460gsm
yarn specification: 1000D/1500D
Colour: yellow
width: 100-165cm
Performance and characteristics
High strength: 23-26D/G, the strength is 6 times that of ordinary fibers,
High temperature resistance: The long-term use temperature is 220 degrees, and it will not burn in case of fire. The maximum temperature resistance is 550 degrees, and it will not decompose or melt.
High wearing resistance: excellent wearing resistance, aging resistance. longer life
Acid and alkali resistance: acid and alkali resistance, not easy to corrode
Application:
Commonly used in protective clothing (such as bulletproof vests), composites, aerospace, automotive, and marine applications.
Also used in making ropes, cables, and other industrial materials where high strength is crucial.
Introduction of aramid:
Characteristics of aramid:
1 The Aramid characteristics of low density, very high tensile modulus, high breaking strength, low breaking elongation, high corrosion resistance, non-conductive, and stability at higher temperatures allow its use as fabric or reinforcing a matrix.
2 Additionally, Aramid is used for high-performance composite applications where lightweight, high strength, stiffness and stress rupture are required with damage and fatigue resistance.
and what can i help
Main technical date sheet:
|
Denier |
Yarn type |
Yarn count (Per 10cm) |
Weight |
Thickness |
Breaking strength N/5cm |
||||
|
Warp |
Weft |
Warp |
Weft |
Warp |
Weft |
G/m2 |
mm |
Warp |
Weft |
|
1000 |
1000 |
TF100 |
TF100 |
85 |
85 |
200g |
0.4 |
6500 |
6500 |
|
1500 |
1500 |
TF100 |
TF100 |
124 |
124 |
410g |
0.6 |
13500 |
13500 |
|
1000 |
1000 |
TF100 |
TF100 |
65 |
65 |
180g |
0.3 |
6000 |
6000 |
|
1000 |
1000 |
TF100 |
TF100 |
110 |
110 |
255g |
0.43 |
8200 |
8200 |
|
1500 |
1500 |
TF100 |
TF100 |
84 |
84 |
300g |
0.4 |
9800 |
9800 |
Main application: bulletproof vest
|
Areal Density |
Features |
application |
|
200gsm |
Good protective performance,comfortable Suitable for women safety vest Suit for concealed vest Light type armored vehicle |
Bullet protection vest Ballistic clothing Anti-fragment clothing |
|
410gsm |
Used in modern processing production of helmets Excellent compatible with polyester, vinyl-ester and epoxy resins. |
Helmets Anti-stab vest |
|
460gsm |
Widely used in hard protective field Most helmets shell made of this fabric Specially applied for layer crack plate. |
helmets |
Packing details: 100meters/roll with carton packing.
the packing size: 110*25*25cm or 170*25*25cm as per the width of the fabric
