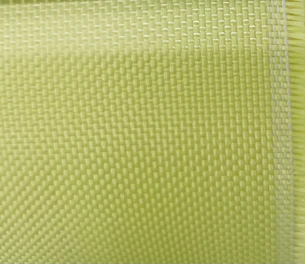

200g para Aramid fiber woven fabric
Square meter weight: 180gsm,200gsm,220gsm,280gsm,410gsm.
Width of the fabric: can be customized.
Weaving style: plain /twill weaving
technical date sheet:
|
Commodity |
Aramid woven fabric |
Aramid woven fabric |
Aramid woven fabric |
Aramid woven fabric |
|
Model |
YD1000/200 |
YD1000/220 |
YD1500/410 |
YD1500/460 |
|
structure |
Plain /twill |
Plain /twill |
Plain /twill |
Plain /twill |
|
Denier(D) |
Warp 1000 |
Warp 1000 |
Warp 1500 |
Warp 1500 |
|
Weft 1000 |
Weft 1000 |
Weft 1500 |
Weft 1500 |
|
|
Yarn type |
Warp TF100 |
Warp TF100 |
Warp TF100 |
Warp TF100 |
|
Weft TF100 |
Weft TF100 |
Weft TF100 |
Weft TF100 |
|
|
Yarn count (per10cm) |
Warp(S) 85 |
Warp(S) 96 |
Warp(S) 124 |
Warp(S) 134 |
|
Weft(S) 85 |
Weft(S) 96 |
Weft(S) 124 |
Weft(S) 134 |
|
|
Breaking strength (N/5cm) |
Warp ≥6500 |
Warp ≥7100 |
Warp ≥13500 |
Warp ≥14500 |
|
Weft ≥6500 |
Weft ≥7100 |
Weft ≥13500 |
Weft ≥14500 |
|
|
Gram weight(gsm) |
200g |
220gsm |
410g |
460g |
|
Thickness (mm) |
0.3 |
0.3 |
0.6 |
0.6 |
1.What is aramid woven fabric?
As the name suggests, it is a fabric formed by interweaving aramid filament from vertical and horizontal directions in accordance with a certain law of float and sink. According to the different weaving methods are divided into plain, twill and satin.
2.What are the uses of aramid woven fabrics?
As a kind of fabric, aramid woven fabric is mainly used to make various clothing. Thanks to the outstanding properties of flame retardant, high temperature resistance, high strength, high modulus and insulation of aramid filament itself, aramid woven fabric has become an ideal material for making electrical insulation clothing, fire fighting clothing, labor protection clothing and other labor protection clothing. Excellent material for clothing. It is their modern "iron shirt" that can provide comprehensive labor protection to our front-line and high-risk workers.
structure of aramids:

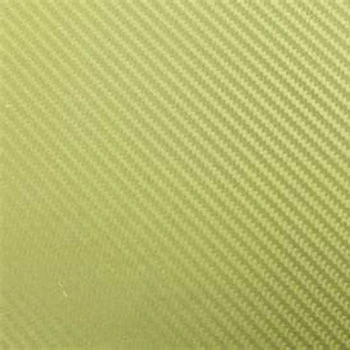

Aramid is a high strength two-by-two weave fabric woven from KEVLAR (aramid)fibers. The twill weave pattern weave creates a highly flexible fabric that easily conforms to contoured surfaces and compound curves while offering the aesthetic of the 2x2 twill weave pattern. It is Ideal for impact resistant applications requiring the lightweight, high strength properties of aramid where pattern show-through is desirable.
|
Areal Density |
Features |
|
200gsm |

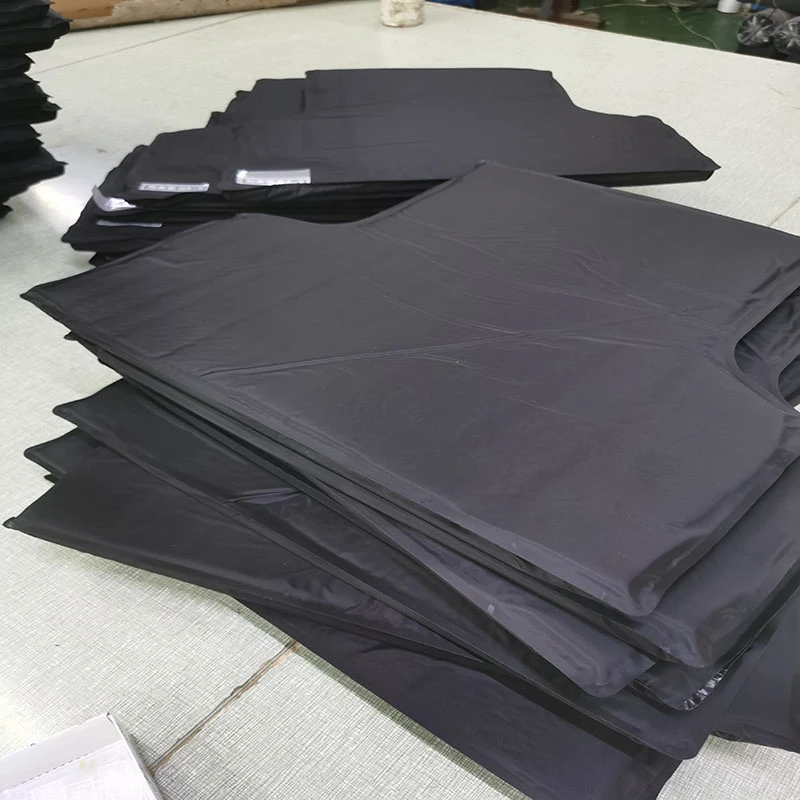

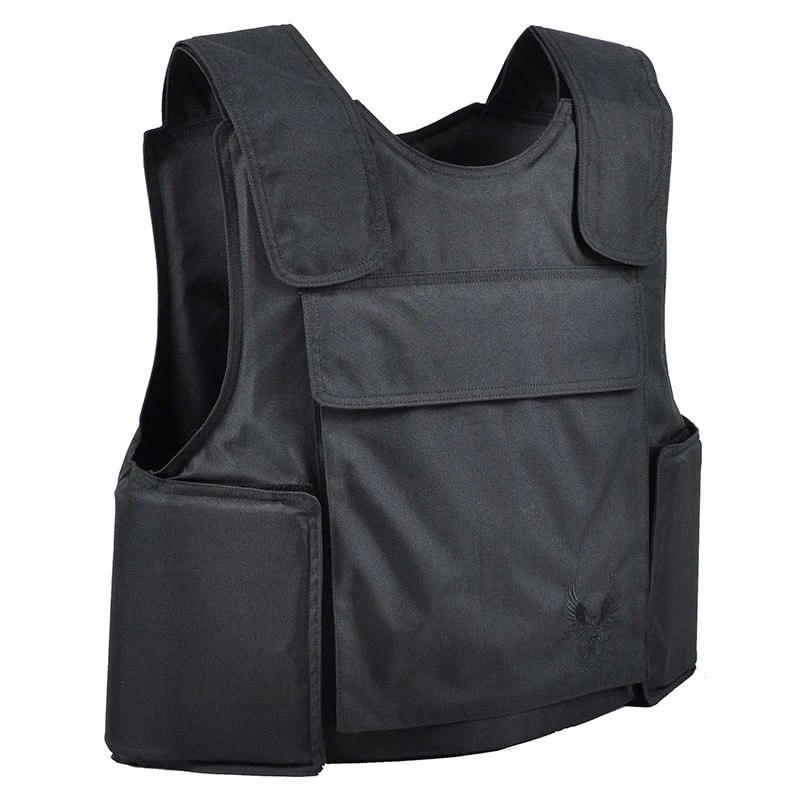

Good protective performance,comfortable Suitable for women safety vest Suit for concealed vest Light type armored vehicle |
|
410gsm |
Used in modern processing production of helmets Excellent compatible with polyester, vinyl-ester and epoxy resins. |
|
460gsm |
Widely used in hard protective field Most helmets shell made of this fabric Specially applied for layer crack plate. |
End application of the aramid woven fabric:
Aramid labor protection clothing
During electrical work
Firefighting suit
Transportation composite materials field
Building reinforcement materials field
application
